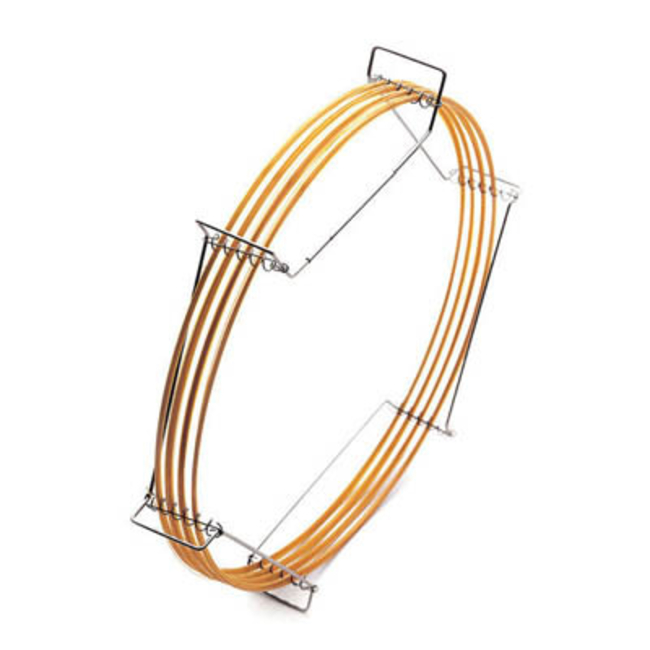

SolGel WAX Columns
SolGel WAX Columns
Actual product may vary

SolGel WAX Columns

Polyethylene Glycol (PEG) in a Sol-Gel matrix. Robust, high temperature polar WAX phase
Have Questions?
Catalog NumberLength (Metric)Diameter (Metric) InnerFilm Thickness
SGE05478630 m0.53 mm0.5 μm
Catalog number SGE054786
View Price:Sign in to see your account pricing. Need an account? Register with us today.
Length (Metric):
30 m
Diameter (Metric) Inner:
0.53 mm
Film Thickness:
0.5 μm
  • Bonded polyethylene glycol
  • Very robust high-temperature column
  • Less susceptible to damage by oxygen than conventional wax phases
  • Polar phase
  • Low bleed and inert
Specifications
Functionality/Interaction TypeHydrogen Bonding or Dipole interactions
Diameter (Metric) Inner0.53 mm
Stationary PhasePolyethylene Glycol
USP TypeG14, G15, G16, G20, G39
Max. Temperature280°C
For Use With (Application)Acids Analysis, Amines Aliphatic, Amines Aromatic, Alcoholic Beverages Analysis, Essential Oils, Food - FAME, Phenols, Sugars-alditol Acetates
Temperature Range30°C to 260/280°C
Film Thickness0.5 μm
Length (Metric)30 m
Packing MaterialSolGel-Wax
PolarityPolar
CoatingFused Silica
Unit SizeEA
