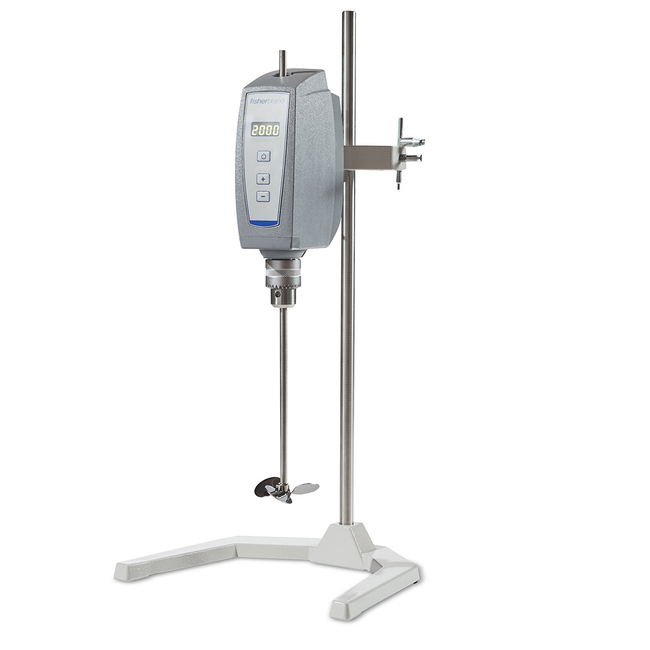

Compact Digital Overhead Stirrer

Name: Compact Digital Overhead Stirrer
SKU: FBFFSR2220U1

Compact Digital Overhead Stirrer ideal for continuous, general purpose mixing. Easily fits into fume hoods or enclosed workstations. Includes chuck, chuck key, support rod, power cord, and instruction manual. Chuck is adjustable to 10 mm (3/8 in.). 220 Volt and includes two cord sets, UK and EU.

Catalog number FBFFSR2220U1

View Price:

Delivers accurate, repeatable results for volumes up to 25 L and 15,000 cps
Four-digit speed display
Three-button control (power on/off, speed increase, speed decrease, light on/off) is easy to use
Last speed setting is stored in memory before unit is powered off
Convenient handle makes stirrer easy to lift, move and set in place
Brushless, maintenance-free DC motor produces consistent mixing at all speeds and provides automatic overload protection
Belt-drive transmission is smooth, quiet and offers high power efficiency (1/15 hp, 50 w)
Sealed housing keeps liquids safely away from internal components
Through shaft allows quick, impeller adjustment and replacement
Includes support rod, chuck, chuck key, chuck guard, UK and EU cord sets, and printed manual

Specifications

Speed40 to 2002 rpm

Capacity25 L

DisplayDigital

Voltage220/240 V

Diameter (English) Shaft0.375 in.

Diameter (Metric) Shaft10 mm

Height (English)10 in.

Height (Metric)25.4 cm

Length (English)6 in.

Length (Metric)15.2 cm

Frequency50/60 Hz

Horsepower1/15 hp

Plug TypeEU/UK

Certifications/ComplianceCSA, CE, UL, FCC, IEC, ICES, EMC, EMI

IncludesOverhead stirrer motor, chuck, chuck key, support rod, external power supply, grounded power cord, manual in four languages (English, French, Spanish and German) and three year warranty

MaterialMolded Nylon and Cast Aluminum Housing

Motor TypeBrushless DC

Torque70 Ncm

TypeOverhead Stirrer

Weight (English)7 lb.

Weight (Metric)3.0 kg

Unit SizeEA
